- Size: 9480*2470*3860mm
- Place of Origin: China
- Brand Name: Chufei
- Model Number: CLQ
- Weight: 11700.000 kg
Company Profile
Hubei Chenglongwei Special Purpose Vehicle Co.,Ltd was established in 2002 and located in Suizhou, a city well-known as the hometown of Emperor Yan and granted “the capital of Chinese special purpose vehicle”. After over ten years of efforts and accumulation, our products covers the market all over the world, our products have been exported to more than 30 countries(Europe, Africa, Asia, South America, etc.) Our company owns strong marketing after-sales service network, providing the customers prefect preliminary design scheme, medium-term manufacturing inspection, and late after-sales and accessories services.
This company is a special purpose vehicle manufacturer approved by the National Development and Reform Commission, and it is refitting base of Dongfeng trucks . The company has devoted to integrate product R&D, manufacturing, sales, and after-sales service, and create our own brand-CHUFEI with reliable quality and excellent after sales-service .
Our products refer to the field of sanitation, transportation, oil, chemical, road, building, project etc, which involves more than 300 varieties.

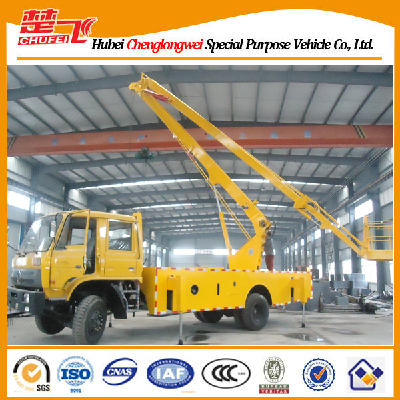

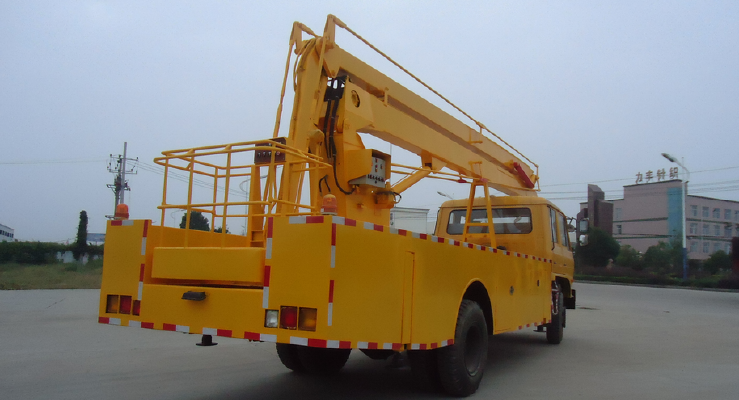

24m aerial platform working truck for sale
<
| Vehicle | Overall dimension(mm) | 9480*2470*3860 |
| GVW(kg) | 11925 | |
| Curb weight(kg) | 11700 | |
| Rated load(kg) | 500 | |
| Fuel Type | Diesel | |
| Top speed(km/h) | 90 | |
| Chassis | Brand | Dongfeng |
| Model | EQ1128GLJ1 | |
| Drive type | 4X2 LHD or RHD | |
| Number of axles | 2 | |
| F/R axle load(kg) | 7000/8000 | |
| Wheel base(mm) | 4700 | |
| Front track base(mm) | 1900 | |
| Rear track base(mm) | 1800 | |
| Approach/Departure Angle(°) | 30/9 | |
| F/R suspension(mm) | 1250/2070 | |
| Number of Tyres | 6 | |
| Tyre size | 9.00-20 16PR | |
| Pieces of spring | 10/11+8 | |
| Clutch | Uniwafer,dry clutch,hydraulic remote control | |
| Braking system | Air braking, cam drum braking | |
| Air-consition | Chose to fix | |
| Engine | Model | ISDe180 30 |
| Horse power(hp) | 180 | |
| Displacement(cc)/Power(kw) | 6700/133 | |
| Emission | Euro 3 | |
| transmission | 6- speed with over drive | |
| Electric system | 24v | |
| Operation control system | Electrically hydraulic control | |
| Allowable passengers in cab | 3 | |
| Equipment | max operation height≥24m,max operation radius≥8.3m,max working platform height≥18m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:1000*700*1000mm, 360° turning (left or right), 4 H-shape legs. clients can shoose hydraulic parts made in China or Italy,to be mentioned. | |
| Lead time | 20 days since receive 30% deposit | |
| Warranty | 12 month from the date of supply | |
