- Size: 7350*2500*3350mm
- Place of Origin: China
- Brand Name: Chufei
- Model Number: CLQ
- Weight: 6225.000 kg
Company Profile
Hubei Chenglongwei Special Purpose Vehicle Co.,Ltd was established in 2002 and located in Suizhou, a city well-known as the hometown of Emperor Yan and granted “the capital of Chinese special purpose vehicle”. After over ten years of efforts and accumulation, our products covers the market all over the world, our products have been exported to more than 30 countries(Europe, Africa, Asia, South America, etc.) Our company owns strong marketing after-sales service network, providing the customers prefect preliminary design scheme, medium-term manufacturing inspection, and late after-sales and accessories services.
This company is a special purpose vehicle manufacturer approved by the National Development and Reform Commission, and it is refitting base of Dongfeng trucks . The company has devoted to integrate product R&D, manufacturing, sales, and after-sales service, and create our own brand-CHUFEI with reliable quality and excellent after sales-service .
Our products refer to the field of sanitation, transportation, oil, chemical, road, building, project etc, which involves more than 300 varieties.

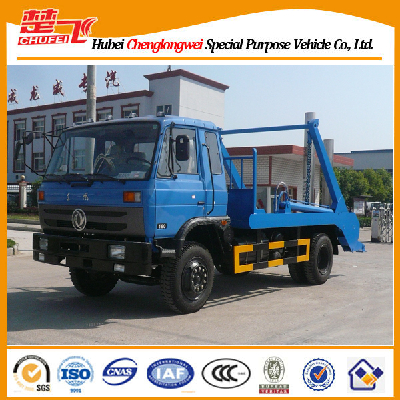

6ton 4x2 160HP garbage transporting truck
Main specification Product model and name CLQ5121ZBSE4 swing arm garbage truck Gross weight(Kg) 12450 Drive type 4x2 Payload(Kg) 6000 Overall dimension(mm) 7350*2500*3350 Curb weight(Kg) 6225 Cab seats 2/3 Approach/departure angle(°) 28/19 Front/rear hang(mm) 1250/2150,1250/1900 Axle No. 2 Wheelbase(mm) 3950,4200 Axle load(Kg) 4750/7700 Max speed(Km/h) 90 Chassis specification Chassis model EQ1121GKJ2 Manufacturer Dongfeng Automobile Group Co., Ltd. Brand name Dongfeng Dimension(mm) 7200×2462×2740 Tyre specification 9.00-20 14PR,9.00R20 14PR Tyre No. 6 Steel spring number 8/11+8 Front track base(mm) 1900 Fuel type Diesel Rear track base(mm) 1800 Emission standard Euro 3 Transmission 6 forward gear,1 reverse gear Cab one and half row cab Engine model Engine manufacturer Displacement(ml) Power(Kw) YC4E160-42 YC6J160-46 GuangxiYuchai Machinary GuangxiYuchai Machinary 4260 6494 118 118 Main C haracteristic Characterized by seperation from the truck, garbage box can be hydraulically operated up and down, with a swing-arm ’ s working cycle time of less than 60S. One truck with several garbage boxes can work, and realize the function of circle transportation .With dump function, the truck can discharge garbage directly from the garbage box .In general, the garbage box can be fixed in pit or on the ground. According to customer ’ s requirements, sealed cover can be installed, avoiding garbage leakage and environment pollution.
Chenglongwei Special Purpose Vehicle Co.,LTD
Add: Jiliang Road, Economic Development Zone, Suizhou City, Hubei Province, China.
Sales Manager: Celia Lee (+86 1387 2897 558)
Skype: liyu007161
E-mail:celialee(at)hbclw.com
www.cn-vehicle.com
- Size: 7350*2500*3350mm
- Place of Origin: China
- Brand Name: Chufei
- Model Number: CLQ
- Weight: 6225.000 kg
