- Size: 8600*2495*3100mm
- Place of Origin: China
- Brand Name: Chufei
- Model Number: CLQ
- Weight: 8795.000 kg
Company Profile
Hubei Chenglongwei Special Purpose Vehicle Co.,Ltd was established in 2002 and located in Suizhou, a city well-known as the hometown of Emperor Yan and granted “the capital of Chinese special purpose vehicle”. After over ten years of efforts and accumulation, our products covers the market all over the world, our products have been exported to more than 30 countries(Europe, Africa, Asia, South America, etc.) Our company owns strong marketing after-sales service network, providing the customers prefect preliminary design scheme, medium-term manufacturing inspection, and late after-sales and accessories services.
This company is a special purpose vehicle manufacturer approved by the National Development and Reform Commission, and it is refitting base of Dongfeng trucks . The company has devoted to integrate product R&D, manufacturing, sales, and after-sales service, and create our own brand-CHUFEI with reliable quality and excellent after sales-service .
Our products refer to the field of sanitation, transportation, oil, chemical, road, building, project etc, which involves more than 300 varieties.

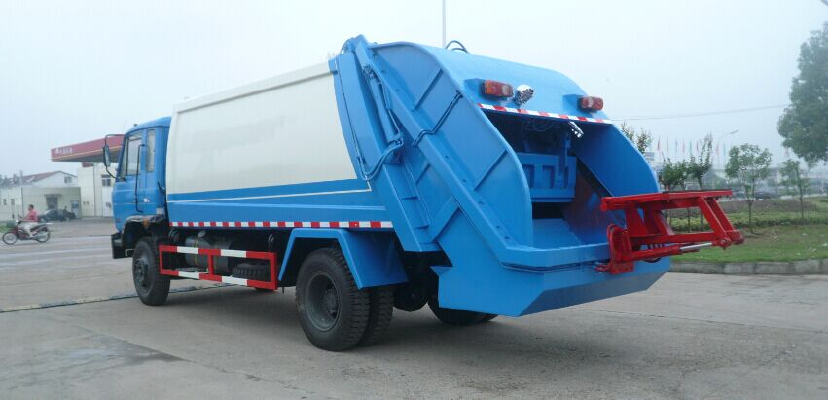

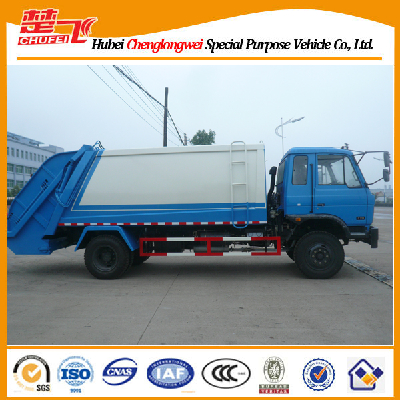

Dongfeng 7 tons 4x2 garbage compactor truck
Main specification | ||||||||||
Product model and name | CLQ5161ZYSE4 garbage compactor truck | |||||||||
Gross weight(Kg) | 15990 | Drive type | 4x2 | |||||||
Payload(Kg) | 7000 | Overall dimension(mm) | 8600*2495*3100 | |||||||
Curb weight(Kg) | 8795 | Cab seats | 2/3 | |||||||
Approach/departure angle(°) | 30/21 | Front/rear hang(mm) | 1250/2850 | |||||||
Axle No. | 2 | Wheelbase(mm) | 4500,4700,4950,4800,5100,3950 | |||||||
Axle load(Kg) | 5995/9995 | Max speed(Km/h) | 88 | |||||||
Chassis specification | ||||||||||
Chassis model | EQ1160GKJ1 | Manufacturer | Dongfeng Automobile Group Co., Ltd. | |||||||
Brand name | Dongfeng | Dimension(mm) | 7650×2480×2810 | |||||||
Tyre specification | 10.00-20 16PR,10.00R20,9.00-20 | Tyre No. | 6 | |||||||
Steel spring number | 9/10+8 | Front track base(mm) | 1940,1900 | |||||||
Fuel type | Diesel | Rear track base(mm) | 1860,1800 | |||||||
Emission standard | Euro 3 | Transmission | 6 forward gear,1 reverse gear | |||||||
Cab | One and half row cab | |||||||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | |||||||
ISDe180 40 |
Dongfeng Cummins Engine Co., Ltd. Dongfeng Cummins Engine Co., Ltd.
| 4500
| 136 140 125 | |||||||
Performance | ||||||||||
Body capacity(m3) | 5.99 | Hopper capacity ( m 3 ) | 1 | |||||||
Compression cycle time ( S) | 30 | Unload garbage time (S ) | 40 | |||||||
Control system | Manual + Automatic |
|
| |||||||
Main C haracteristic | ||||||||||
1,Can choose 240L(single bin,double bins)or 360L,660L,1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism. 2,With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck , very convenient and efficient. 3,With working device of emergency braking stop button. 4,Garbage body use frame design, elegant, strong structure, large effective capacity. 5 Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks. 6,Through hydraulic system design, the truck achieve the function of two way garbage compression, that is improve the compressibility ,make the compression ratio up to 1:2.5,the garbage can reach more then 600~800kg/m3 after compression. | ||||||||||
