- Size: 5830*2100*2440mm
- Place of Origin: China
- Brand Name: Chufei
- Model Number: CLQ
- Weight: 3700.000 kg
Company Profile
Hubei Chenglongwei Special Purpose Vehicle Co.,Ltd was established in 2002 and located in Suizhou, a city well-known as the hometown of Emperor Yan and granted “the capital of Chinese special purpose vehicle”. After over ten years of efforts and accumulation, our products covers the market all over the world, our products have been exported to more than 30 countries(Europe, Africa, Asia, South America, etc.) Our company owns strong marketing after-sales service network, providing the customers prefect preliminary design scheme, medium-term manufacturing inspection, and late after-sales and accessories services.
This company is a special purpose vehicle manufacturer approved by the National Development and Reform Commission, and it is refitting base of Dongfeng trucks . The company has devoted to integrate product R&D, manufacturing, sales, and after-sales service, and create our own brand-CHUFEI with reliable quality and excellent after sales-service .
Our products refer to the field of sanitation, transportation, oil, chemical, road, building, project etc, which involves more than 300 varieties.

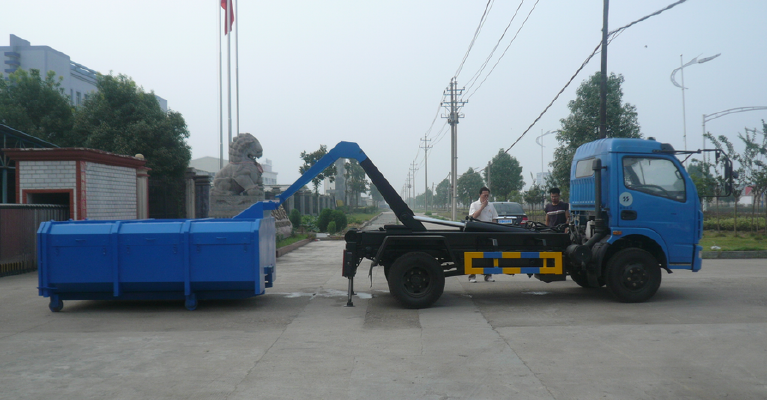

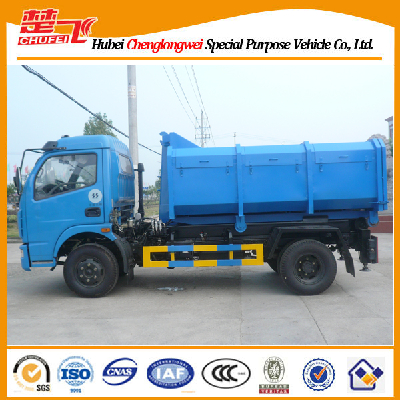

Dongfeng DLK hook lift garbage truck
Produced by Hubei Chenglongwei Special Purpose Vehicle Co., LTD
Adorpt Dongfeng DLK 4x2 chassis.
Good quality, factor direct sale, CCC and ISO certifcation.
Main specification
Engine: Cummins 120hp, euro3
Transmission: manual, 5 speed
Tire specification: 7.50-16
capacity: 6 cubic meter
Main specification Product model and name Hook lift garbage truck Gross weight(Kg) 8275 Drive type 4x2 Payload(Kg) 4380 Overall dimension(mm) 5830*2100*2440 Curb weight(Kg) 3700 Cab seats 2/3 Approach/departure angle(°) 24/28 Front/rear hang(mm) 1210/820 Axle No. 2 Wheelbase(mm) 3800 Axle load(Kg) 3310/4965 Max speed(Km/h) 95 Chassis specification Chassis model EQ1070TJ9AD3 Manufacturer Dongfeng Automobile Group Co., Ltd. Brand name Dongfeng Dimension(mm) 6815×2080×2440 Tyre specification 7.50-16 14PR Tyre No. 6 Steel spring number 8/10+7 Front track base(mm) 1770 Fuel type Diesel Rear track base(mm) 1586 Emission standard Euro 3 Transmission 5 forward gear,1 reverse gear Cab single cabin Engine model Engine manufacturer Displacement(ml) Power(Kw) CY4102-C3C Dongfeng chaoyang 3856 88 Main C haracteristic Equipped with dusbin,hydraulic system and operating system; Equipped with one advanced double acting hydrocylinders; One vehicle can cooperate with several dusbins.
Chenglongwei Special Purpose Vehicle Co.,LTD
Add: Jiliang Road, Economic Development Zone, Suizhou City, Hubei Province, China.
Sales Manager: Celia Lee (+86 1387 2897 558)
Skype: liyu007161
E-mail:celialee(at)hbclw.com
www.cn-vehicle.com
- Size: 5830*2100*2440mm
- Place of Origin: China
- Brand Name: Chufei
- Model Number: CLQ
- Weight: 3700.000 kg
