- Size: 7250*2480*3050mm
- Place of Origin: China
- Brand Name: Chufei
- Model Number: CLQ
- Weight: 4950.000 kg
Company Profile
Hubei Chenglongwei Special Purpose Vehicle Co.,Ltd was established in 2002 and located in Suizhou, a city well-known as the hometown of Emperor Yan and granted “the capital of Chinese special purpose vehicle”. After over ten years of efforts and accumulation, our products covers the market all over the world, our products have been exported to more than 30 countries(Europe, Africa, Asia, South America, etc.) Our company owns strong marketing after-sales service network, providing the customers prefect preliminary design scheme, medium-term manufacturing inspection, and late after-sales and accessories services.
This company is a special purpose vehicle manufacturer approved by the National Development and Reform Commission, and it is refitting base of Dongfeng trucks . The company has devoted to integrate product R&D, manufacturing, sales, and after-sales service, and create our own brand-CHUFEI with reliable quality and excellent after sales-service .
Our products refer to the field of sanitation, transportation, oil, chemical, road, building, project etc, which involves more than 300 varieties.

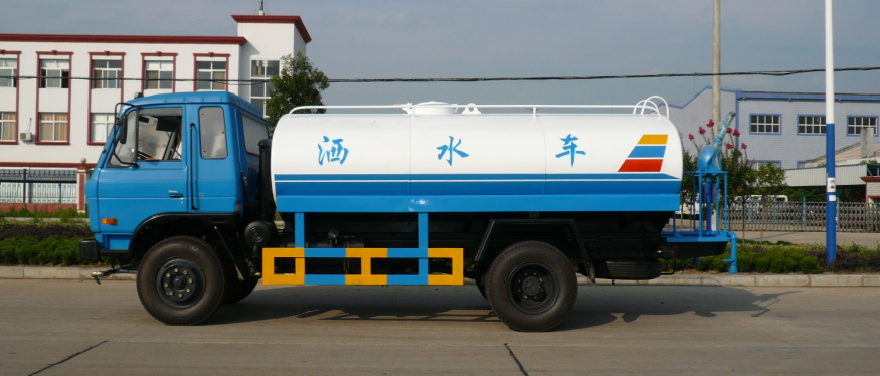

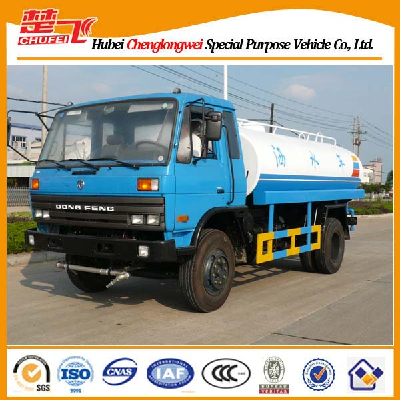

Dongfeng water tank truck water truck water spray truck
Chassis Brand Model Dongfeng Drive Mode 4x2 Tire 9.00-20,Nylon tire Brake Air brake Engine Model B170 33
Horse power(Hp) 170 Displacement(ml)/Power(kw) 5900/125 Emission Euro3 Main Parameter Overall dimension(MM)
Approx.L*W*H 7250*2480×3050 wheelbase 3950 Axles No. 2
Weight(KG)
Approx.Gross weight 12490 Approx.Kerb weight 4950 Approx.Load weight 7200 Leaf spring No. 8/10+7 Approaching/Departure Angle(°) 20/10 Front/RearTrack(mm) 1810/1800 Top speed(km/h) 95 Gear Box 5 forward,1 reverse Front/Rear Axle Load(kg) 5000/8000 Water pump 65QZ-40/45 Pump specification Flow rate:40m³/h,Delivery lift height:90m,Input shaft rotational speed:1450r/min,Shaft power:9.25kw,self-priming height:6.5m,self-priming time:1.5min/5m,pump diameter:65mm,vertical suction height>7m,spraying width>14m,spraying range>28m Special Equipment Equipped with front(rear,side) sprinkler (sprinkling width>14m)
Equipped with rear working platform with water cannon(range>28m)
Equipped with WL pump(suction lift>6m)
Equipped with fire valve,water valve,and filter gauze PTO Special PTO for water tank truck, Paint High quality paint,Corlor as customer's request Tank Material 4mm Carbon Steel Water Tank dimensions
(L*Long axle*short axle)(mm) 4500*2000*1200 Capacity 8000L Certification CCC,ISO Cab LEFT hand drive or Right hand drive for option,w/AC,power steering,color as customer request
