Hydraulic cylinder used for dump truck Shacman 6x4 heavydutytruckfactory directly sale

Hydraulic cylinder used for dump truck Shacman 6x4 heavydutytruckfactory directly sale

  • Min.Order Quantity: 1 Set
  • Supply Ability: 800 Sets per Month
  • Port: Wuhan Shanghai
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2002-08-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  7505x2490x3450mm
  • Place of Origin:  China
  • Brand Name:  Chufei
  • Model Number:  CLQ
  • Weight: 12000.000 kg

Company Profile


Hubei Chenglongwei Special Purpose Vehicle Co.,Ltd was established in 2002 and located in Suizhou, a city well-known as the hometown of Emperor Yan and granted “the capital of Chinese special purpose vehicle”. After over ten years of efforts and accumulation, our products covers the market all over the world, our products have been exported to more than 30 countries(Europe, Africa, Asia, South America, etc.) Our company owns strong marketing after-sales service network, providing the customers prefect preliminary design scheme, medium-term manufacturing inspection, and late after-sales and accessories services.
This company is a special purpose vehicle manufacturer approved by the National Development and Reform Commission, and it is refitting base of Dongfeng trucks . The company has devoted to integrate product R&D, manufacturing, sales, and after-sales service, and create our own brand-CHUFEI with reliable quality and excellent after sales-service .
Our products refer to the field of sanitation, transportation, oil, chemical, road, building, project etc, which involves more than 300 varieties.

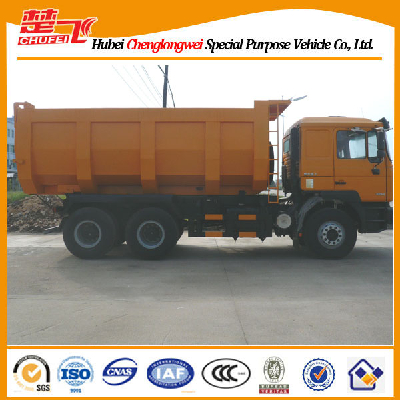

Hydraulic cylinder used for dump truck Shacman 6x4 heavy duty truck factory directly sale

Vehicle Overall dimension(mm) 7505*2490*3450
GVW(kg) 32000
Curb weight(kg) 12000
Rated load(kg) 20000
Fuel Type Diesel
Top speed(km/h) 80
Chassis Brand Shacman
Model SX3256UN294
Drive type 6X4 LHD or RHD
Number of axles 3
F/R axle load(kg) 10000/22000(double axle)
Wheelbase(mm) 2925+1350
Front track base(mm) 1939
Rear track base(mm) 1860/1860
Approach/Departure Angle(°) 28/30
F/R suspension(mm) 1576/1000
Number of Tyres 10
Tyre size 11.00R20 18PR
Pieces of spring 10/12
Clutch Uniwafer,dry clutch,hydraulic remote control
Braking system Air braking,cam drum braking
Air-condition Chose to fix
Engine Model WP10.270E40
Horse power(hp) 270
Displacement(cc)/Power(kw) 9726/199
Emission Euro4
Body Specs Body dimensions(mm) 4900*2300*1500
Body steel(mm) carbon steel Q235 floor 8mm(0.32in),side 6mm(0.24in)
Lifting system Middle lifting system
Lead time 20days since receive 30% deposit
Warranty 12month from the date of supply



Chenglongwei Special Purpose Vehicle Co.,LTD

Add: Jiliang Road, Economic Development Zone, Suizhou City, Hubei Province, China.

Sales Manager: Celia Lee (+86 1387 2897 558)

Skype: liyu007161

E-mail:celialee(at)hbclw.com

www.cn-vehicle.com


  • Size:  7505x2490x3450mm
  • Place of Origin:  China
  • Brand Name:  Chufei
  • Model Number:  CLQ
  • Weight: 12000.000 kg
