- Size: 9625*2500*3660mm
- Place of Origin: China
- Brand Name: Chufei
- Model Number: CLQ
- Weight: 15350.000 kg
Company Profile
Hubei Chenglongwei Special Purpose Vehicle Co.,Ltd was established in 2002 and located in Suizhou, a city well-known as the hometown of Emperor Yan and granted “the capital of Chinese special purpose vehicle”. After over ten years of efforts and accumulation, our products covers the market all over the world, our products have been exported to more than 30 countries(Europe, Africa, Asia, South America, etc.) Our company owns strong marketing after-sales service network, providing the customers prefect preliminary design scheme, medium-term manufacturing inspection, and late after-sales and accessories services.
This company is a special purpose vehicle manufacturer approved by the National Development and Reform Commission, and it is refitting base of Dongfeng trucks . The company has devoted to integrate product R&D, manufacturing, sales, and after-sales service, and create our own brand-CHUFEI with reliable quality and excellent after sales-service .
Our products refer to the field of sanitation, transportation, oil, chemical, road, building, project etc, which involves more than 300 varieties.

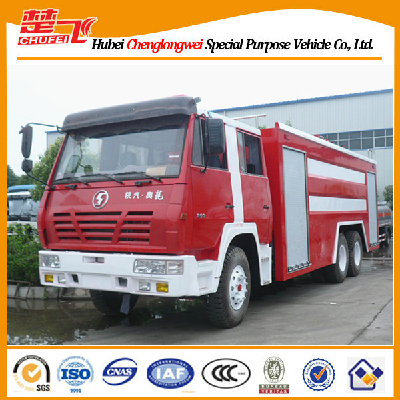

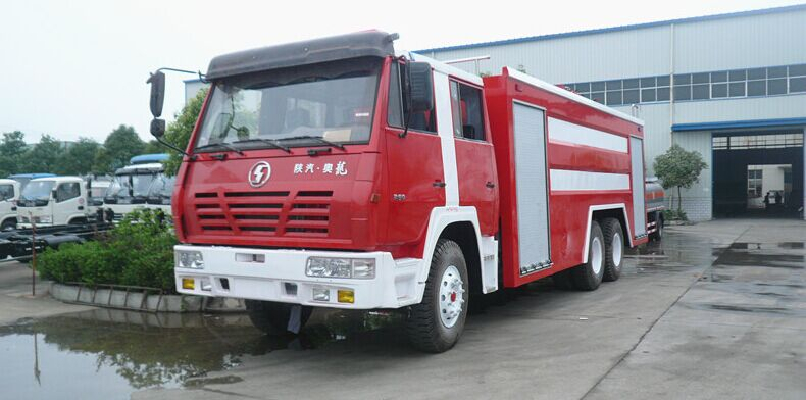

Shacman 3 axles Euro IV 10CBM water fire truck
Cab | Double row, rated 6--8 passengers | |
Volume | Water tanker 9500L | |
Chassis | Brand | Shacman |
Chassis model | SX1254JP434 | |
Drive type | 6x4, LHD , RHD | |
Tire | 12.00-20,11.00-20,11.00R20,12.00R20 | |
Tire No. | 10+1(spare) | |
Braking System | Air braking | |
Clutch | Uniwafer, dry clutch, hydraulic remote control | |
Engine | Model | WD615.44 |
Horse Power(hp) | 260 | |
Displacement(cc)/Power(kw) | 9726/193 | |
Emission | Euro 4 | |
Main Parameters | Overall dimension (L*W*H/mm) | 9625X2500X3660 |
Wheelbase(mm) | 4325+1350 | |
Axles No. | 3 | |
GVW(kg) | 25000 | |
Curb Weight(kg) | 15350 | |
Leaf spring No. | 9/12, 10/12 | |
Approaching/Departure Angle(°) | 17/14 | |
Front/Rear suspension(mm) | 1525/2165 | |
Max speed(km/h) | 92 | |
Water Pump
| centrifugal pump | Flow capacity: 60L/S,Pressure:1.0MPa |
Suction Height | 7m | |
Lift Head | 65m | |
Chenglongwei Special Purpose Vehicle Co.,LTD
Add: Jiliang Road, Economic Development Zone, Suizhou City, Hubei Province, China.
Sales Manager: Celia Lee (+86 1387 2897 558)
Skype: liyu007161
E-mail:celialee(at)hbclw.com
www.cn-vehicle.com
