- Size: 9885*2490*3170mm
- Place of Origin: China
- Brand Name: Chufei
- Model Number: CLQ
- Weight: 10870.000 kg
Company Profile
Hubei Chenglongwei Special Purpose Vehicle Co.,Ltd was established in 2002 and located in Suizhou, a city well-known as the hometown of Emperor Yan and granted “the capital of Chinese special purpose vehicle”. After over ten years of efforts and accumulation, our products covers the market all over the world, our products have been exported to more than 30 countries(Europe, Africa, Asia, South America, etc.) Our company owns strong marketing after-sales service network, providing the customers prefect preliminary design scheme, medium-term manufacturing inspection, and late after-sales and accessories services.
This company is a special purpose vehicle manufacturer approved by the National Development and Reform Commission, and it is refitting base of Dongfeng trucks . The company has devoted to integrate product R&D, manufacturing, sales, and after-sales service, and create our own brand-CHUFEI with reliable quality and excellent after sales-service .
Our products refer to the field of sanitation, transportation, oil, chemical, road, building, project etc, which involves more than 300 varieties.

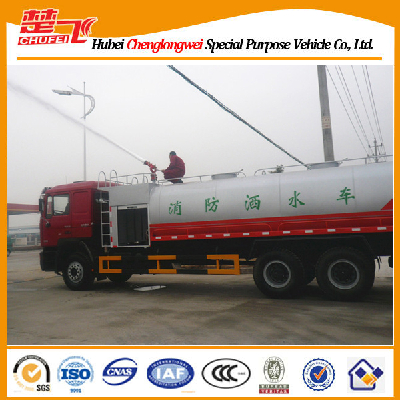

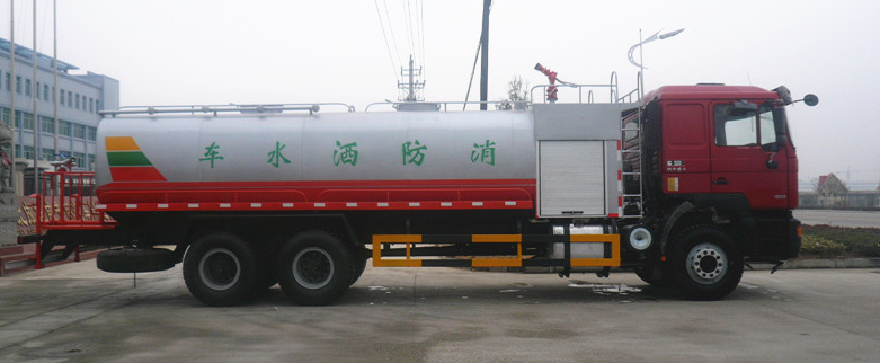

Shacman water fire truck water spray truck water tank truck
Chassis Brand Model Shacman Drive Mode 6x4 Tire 11.00R20 18PR Brake Air brake Engine Model WP7.240E40
Horse power(Hp) 240 Displacement(ml)/Power(kw) 7140/176 Emission Euro 4 Main Parameter Overall dimension(MM)
Approx.L*W*H 9885*2490*3170 wheelbase 4375+1350 Axles No. 3
Weight(KG)
Approx.Gross weight 25000 Approx.Kerb weight 10870 Approx.Load weight 14000 Leaf spring No. 9/11 Approaching/Departure Angle(°) 20/10 Front/Rear Track(mm) 2011, 1860/1860 Top speed(km/h) 85 Gear Box 8 forward,1 reverse Front/Rear Axle Load(kg) 7000/18000(double axle)
Water pump 80QZ-60/90 Pump specification Flow rate:40m³/h,Delivery lift height:90m,Input shaft rotational speed:1180r/min,Shaft power:22.2kw,self-priming height:6.5m,self-priming time:1.5min/5m,pump diameter:65mm,vertical suction height>7m,spraying width>14m,spraying range>28m Special Equipment Equipped with front(rear,side) sprinkler (sprinkling width>14m)
Equipped with rear working platform with water cannon(range>28m)
Equipped with WL pump(suction lift>6m)
Equipped with fire valve,water valve,and filter gauze PTO Special PTO for water tank truck, Paint High quality paint,Corlor as customer's request Tank Material 4mm or 5mm Carbon Steel Water Tank dimensions
(L*Long axle*short axle)(mm) 6100*2300*1500 Capacity 14500L Certification CCC,ISO Cab LEFT hand drive or Right hand drive for option,w/AC,power steering,color as customer request
