- Size: 7520*2490*3250mm
- Place of Origin: China
- Brand Name: Chufei
- Model Number: CLQ
- Weight: 12170.000 kg
Company Profile
Hubei Chenglongwei Special Purpose Vehicle Co.,Ltd was established in 2002 and located in Suizhou, a city well-known as the hometown of Emperor Yan and granted “the capital of Chinese special purpose vehicle”. After over ten years of efforts and accumulation, our products covers the market all over the world, our products have been exported to more than 30 countries(Europe, Africa, Asia, South America, etc.) Our company owns strong marketing after-sales service network, providing the customers prefect preliminary design scheme, medium-term manufacturing inspection, and late after-sales and accessories services.
This company is a special purpose vehicle manufacturer approved by the National Development and Reform Commission, and it is refitting base of Dongfeng trucks . The company has devoted to integrate product R&D, manufacturing, sales, and after-sales service, and create our own brand-CHUFEI with reliable quality and excellent after sales-service .
Our products refer to the field of sanitation, transportation, oil, chemical, road, building, project etc, which involves more than 300 varieties.

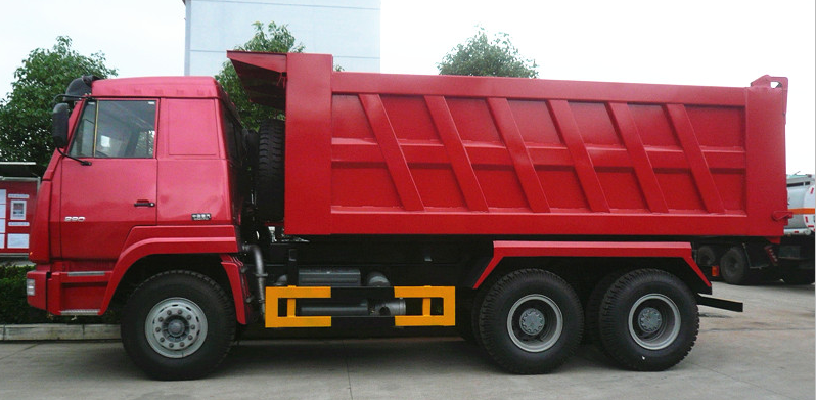

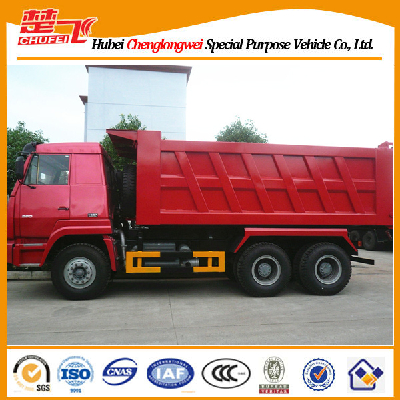

Sinotruk 6X4 dump truck Styre dump truck
| Vehicle | Overall dimension(mm) | 7520*2490*3250 |
| GVW(kg) | 25000 | |
| Curb weight(kg) | 12170 | |
| Rated load(kg) | 12700 | |
| Fuel Type | Diesel | |
| Top speed(km/h) | 75 | |
| Chassis | Brand | Sinotruk |
| Model | ZZ3251M3241C1 | |
| Drive type | 6X4 LHD or RHD | |
| Number of axles | 3 | |
| F/R axle load(kg) | 7000/18000(double axle) | |
| Wheelbase(mm) | 3200+1350 | |
| Front track base(mm) | 2047 | |
| Rear track base(mm) | 1820/1820 | |
| Approach/Departure Angle(°) | 20.5/54 | |
| F/R suspension(mm) | 1320/1650 | |
| Number of Tyres | 10 | |
| Tyre size | 11.00R20 18PR | |
| Pieces of spring | 10/12 | |
| Clutch | Uniwafer,dry clutch,hydraulic remote control | |
| Braking system | Air braking,cam drum braking | |
| Air-condition | Chose to fix | |
| Engine | Model | WD615.93E |
| Horse power(hp) | 290 | |
| Displacement(cc)/Power(kw) | 9726/213 | |
| Emission | Euro 3 | |
| Body Specs | Body dimensions(mm) | 5000*2300*1200 |
| Body steel(mm) | carbon steel Q235 floor 8mm(0.32in),side 6mm(0.24in) | |
| Lifting system | Middle lifting system | |
| Lead time | 20days since receive 30% deposit | |
| Warranty | 12month from the date of supply | |
